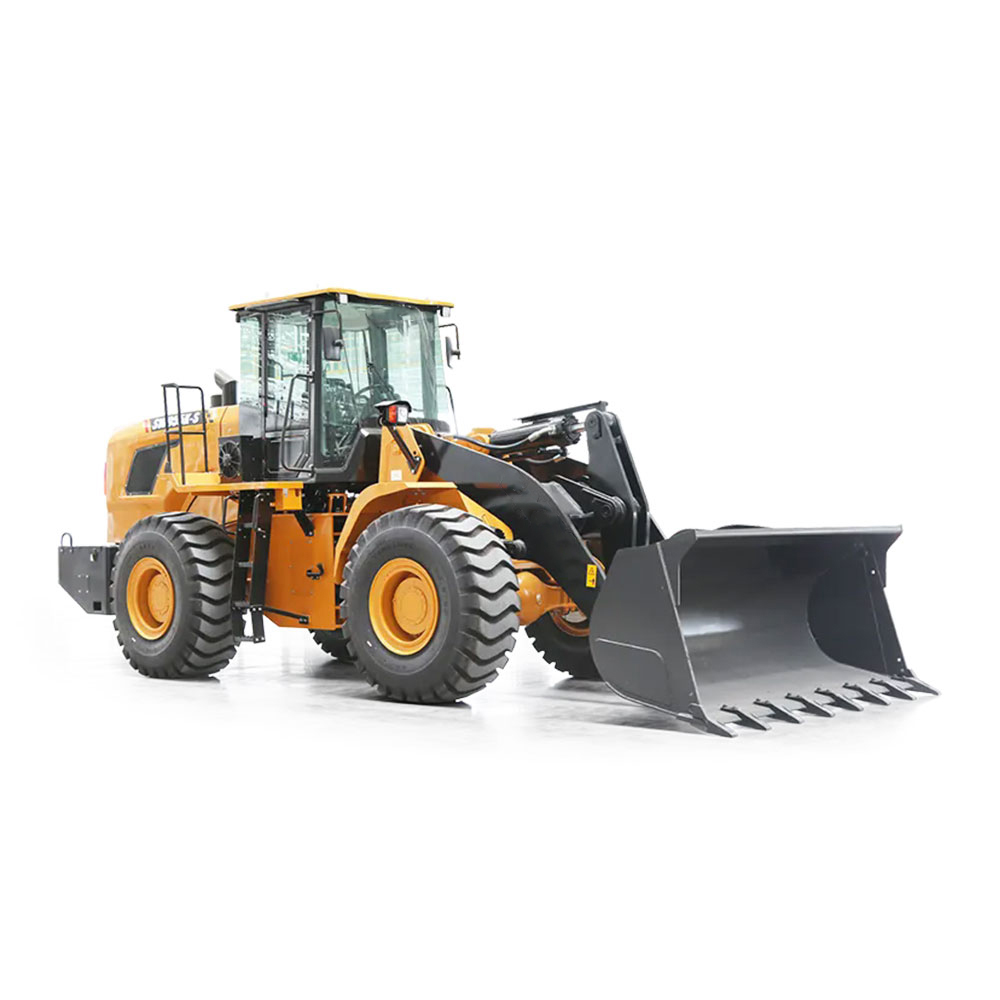

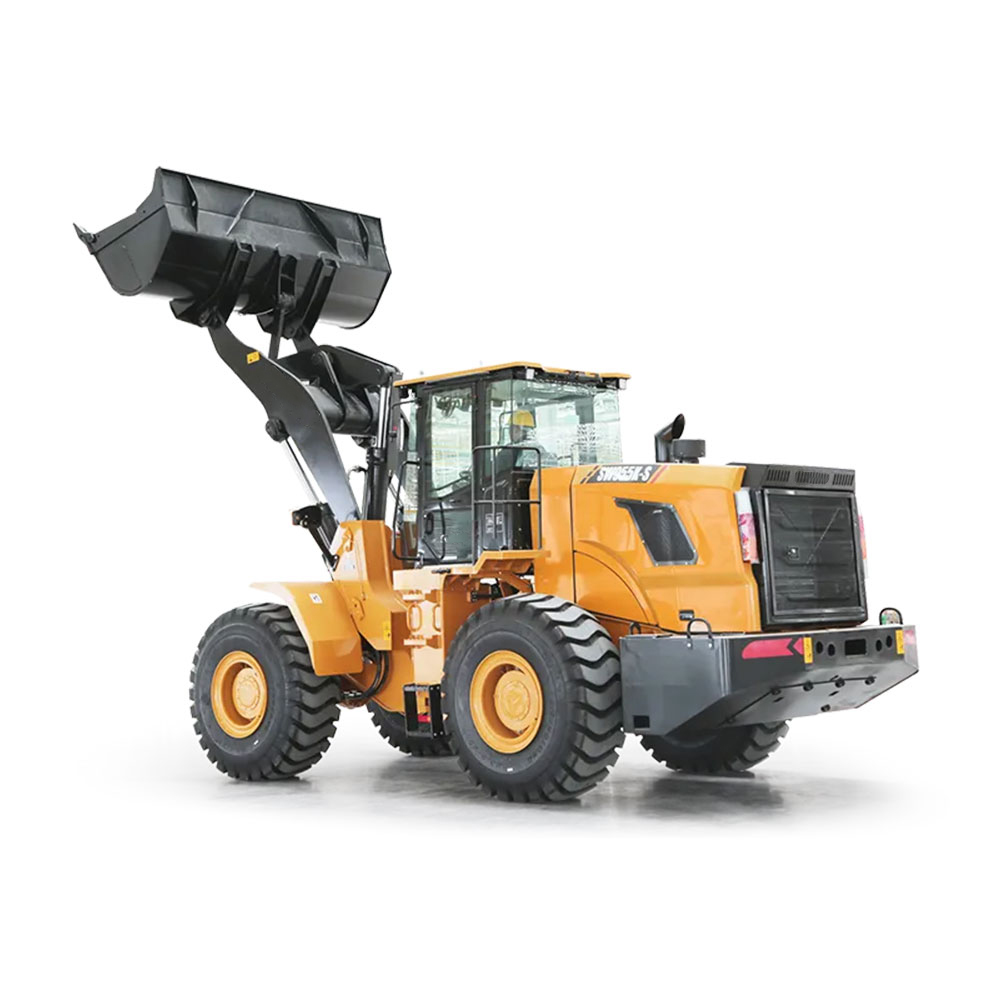

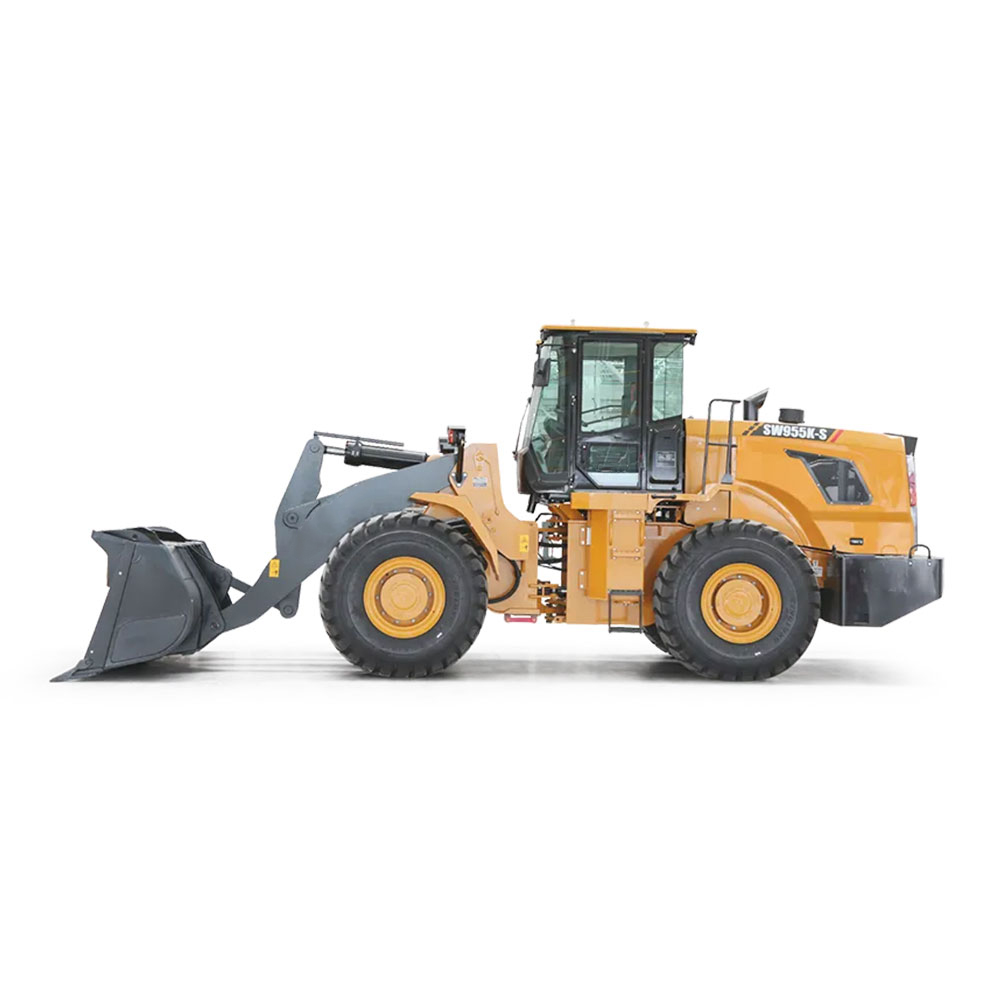

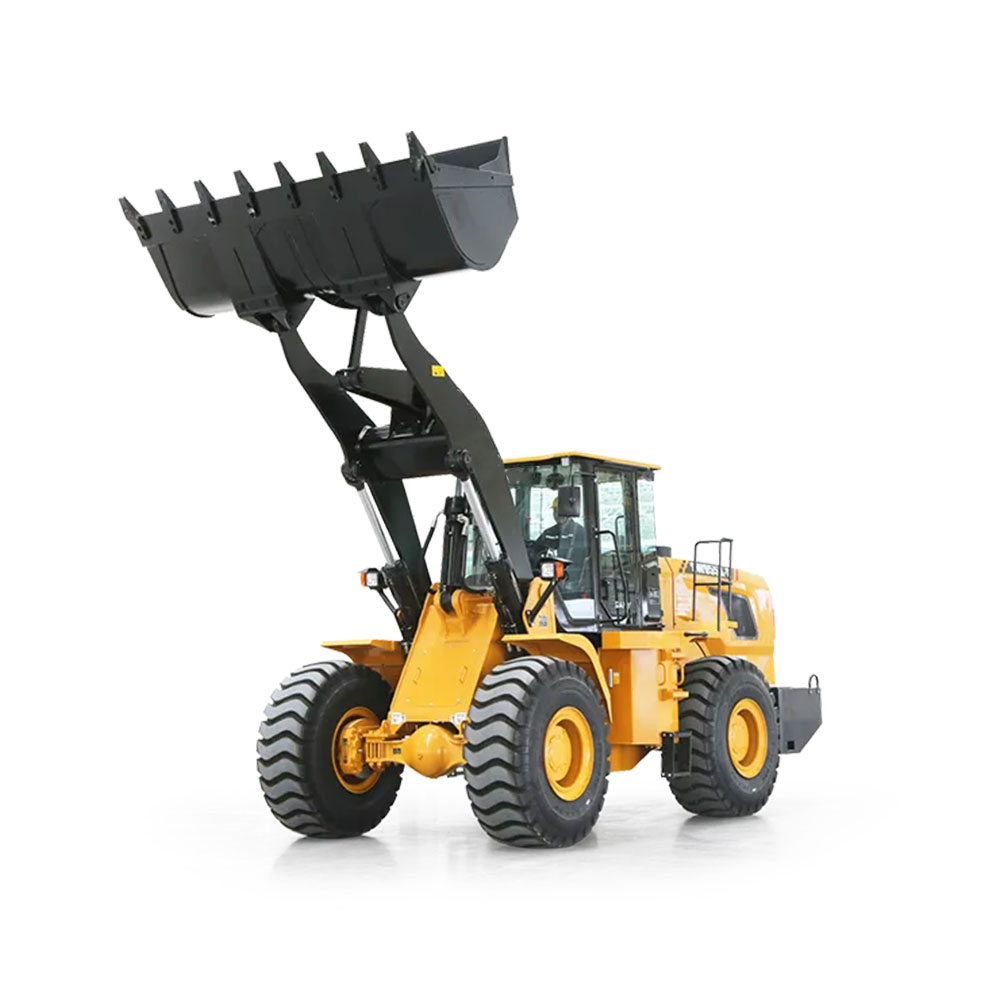

SW955K-S
| Availability: | |
|---|---|
| Quantity: | |
It is equipped with Deutz engine, with a power of 175kW, strong power, stability and reliability, economy, fuel saving and convenient maintenance.
Tailored for the loader, the reinforced 50 planetary transmission is matched with the traction force to increase to 168kN, enhancing the torque bearing and transmission capacity, and improving the operation efficiency by 5%.
The load-sensitive hydraulic system is adopted, and the flow is distributed according to the demand through the three-pump combination. The control performance is considered while the high efficiency and energy conservation is considered. The steering is light, the response speed is fast, and the energy efficiency distribution of the hydraulic system is reasonable.
Full hydraulic brake is adopted, and the front and rear circuits are controlled independently, so the double fuse is safer, more reliable and more sensitive.
1.Large space and wide vision.
2.Good sealing and much lower noise than industry standard.
3.Inch display control panel, safer auxiliary view.
4.Better shock absorption for luxury seats.
5.The air conditioner has uniform temperature and better thermal adaptability.
Basic performance | Rated load 5500kg | Overall machine weight 17000kg |
Bucket capacity 2.8m³ | Unloading height 3126±50mm | |
Uninstall distance 1050mm | Maximum traction 168kN | |
The greatest momentum for growth 180kN | ||
Engine | Model D09S4-240E0 | Rated power 175/2000kW/rpm |
| Three items are a harmonious match 9.5±0.5s | |
Overall machine size | Total machine length 8130mm | Overall machine width 3030mm |
Overall machine height 3520mm | Wheelbase 3300mm | |
