XGH5180TDYD6D
| Availability: | |
|---|---|
| Quantity: | |

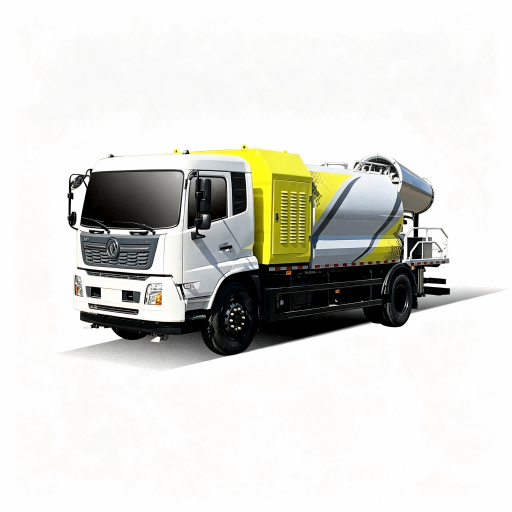

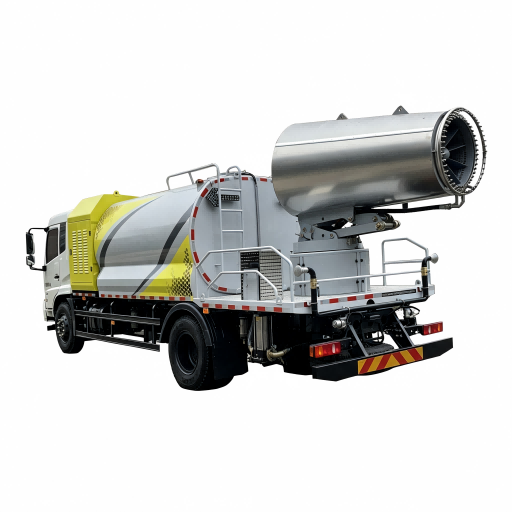

The sprayer adopts a unique conical flow guide and dual-spray structure, effectively improving atomization efficiency and spray distance, achieving optimal dust suppression, and is more energy-efficient than similar products under the same operating conditions. It has high fog formation efficiency, with droplet particle sizes ranging from 2μm to 200μm, effectively adsorbing and settling solid particles of various sizes in the air. The sprayer uses double-wall noise reduction technology, with a porous inner layer and soundproofing materials arranged in the middle layer, achieving good noise absorption and noise reduction.
2. The series can be equipped with 100m and 120m sprayers, offering a wide dust suppression range, with pitch angle adjustment of -10°~+40° and manual control of horizontal ± 120° rotation (automatic rotation ± 90°). After operation, the barrel automatically resets itself.
Parameter configuration
Project | Unit | XGH5180TDYD6D |
Pump working pressure | MPa | 1.0~2.0 |
Maximum spray horizontal range | m | 100 |
Sprayer pitch angle | 。 | -10~+60 |
Sprayer rotation angle | 。 | ± 120 |
Spray flow | L/min | ≥100 |
Hedge cleaning width | m | 24 |
The width of the sprinkler is sprinkled | m | 16 |
Spray width of the shower | m | 14 |
Spray gun range | m | 38 |
Overall dimensions (length ×width ×height) | mm | 10150×2500×3390 |
