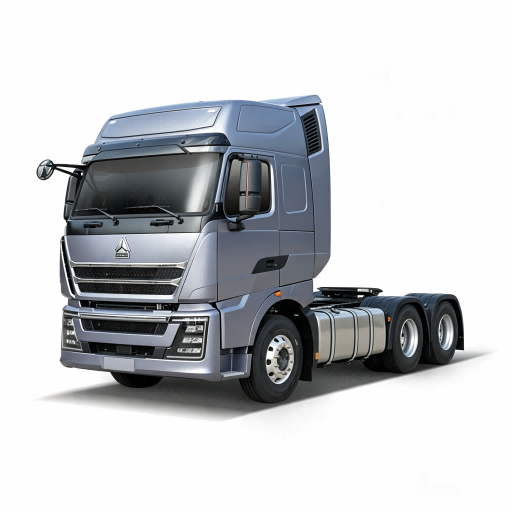

WP14T 610
| Availability: | |
|---|---|
| Quantity: | |
Peak Power, Ultra-Intelligent Fuel Saving:
(1) World's first 52.28% ultra-high thermal efficiency diesel engine platform + 14L ultra-large displacement + 610 ultra-high horsepower, easily adapting to any domestic working conditions;
(2) Sinotruk's exclusive stepless S power chain, integrated development and joint calibration, achieving a comprehensive fuel savings of 15.5%;
(3) Low wind resistance and reduced consumption: TH7-G has a drag coefficient of <0.49, industry-leading.
Ultimate Reliability with Extra Efficiency and Operation: (1) The three major assembly B10 modules have a lifespan of ≥1.8 million km, with maintenance intervals of 12,000,000/240,000/240,000 km; (2) Key vehicle maintenance items are concentrated, with 20,000 to 50,000 km longer than competitors, significantly reducing station stops and improving attendance.
Technical specifications
Engine | Model | WP14T610E62 |
Net Power (kW)/ | 448/1800 | |
| 2750/900-1400 | |
Transmission | HW16-HD27 Transmission(with Hydraulic | |
Clutch (mm) | φ430 | |
Rear axle model | MCY12BGS self-regulating arm double rear axle | |
Rear axle speed | 2.71 | |
Fuel tank (L) | 860+240 | |
Frame cross-section(mm) | 270 | |
Suspension (front spring,rear spring) | Front and rear leaf springs missing(2/3) | |
Tires | 12R22.5 | |
Vehicle specifications
Engine model | WP14T610E62 |
Dimensions(mm) | 7120×2550×3940 |
Wheelbase(mm) | 3400+1400 |
Front overhang,rear overhang(mm) | 1540/780 |
Factory-specified maximum | 9300 |
Rated Occupancy(persons) | 2 |
