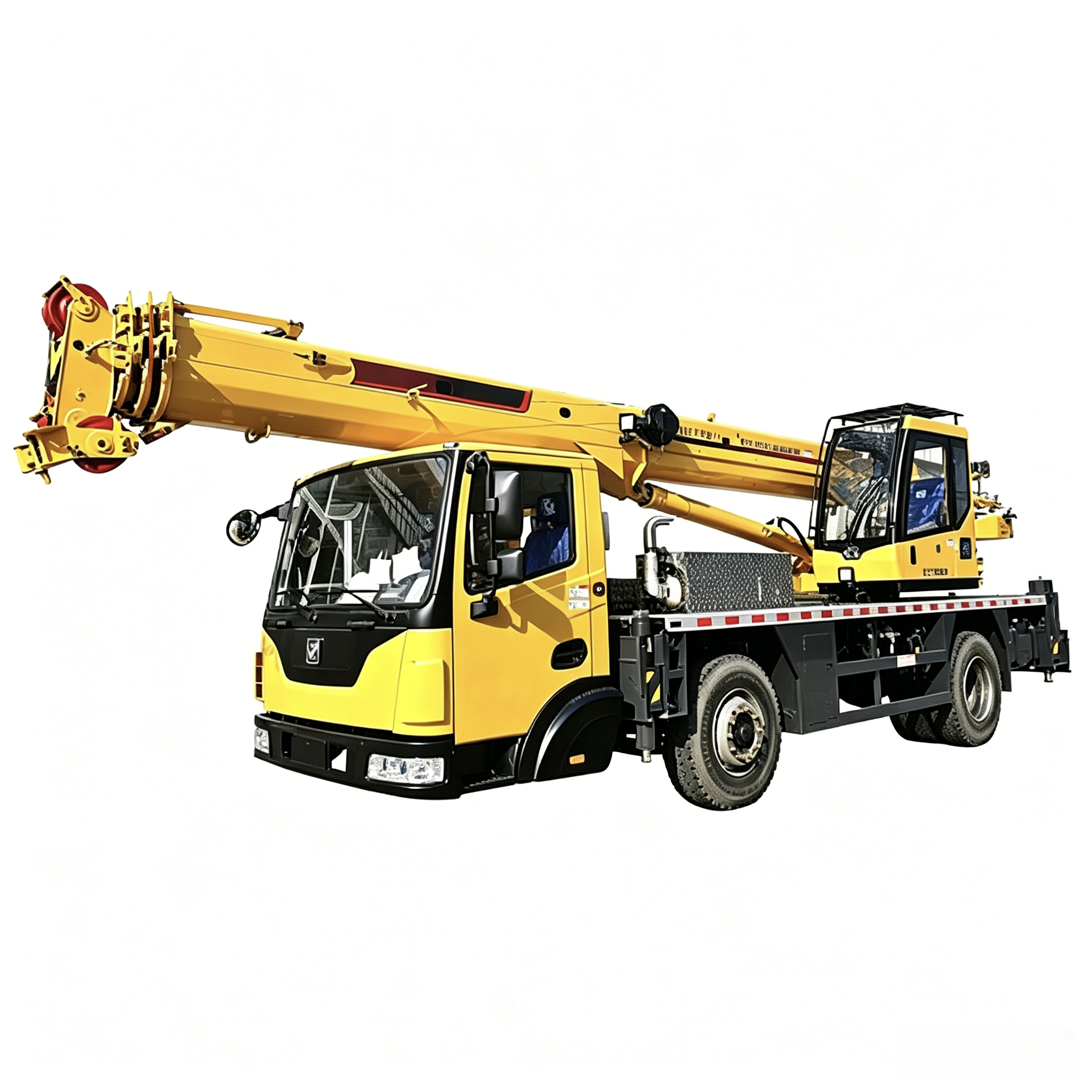

XCT12K4-1
| Availability: | |
|---|---|
| Quantity: | |
The machine is compact, with a wheelbase of only 3.65m and a minimum turning radius of 7m, making it highly maneuverable, making it easy to navigate old residential communities, workshops, culverts, and rural paths, saving time and worry.
Excellent handling performance, with a dual-pump merging hydraulic system sensitive to load compensation after the valve. The speed regulation of each action is unaffected by the load, offering a wide speed control range, smooth handling, smooth switching between composite actions, and good coordination.
With a 28m boom length, it is based on big data mining technology for 300,000 crane application scenarios, widely adaptable to urban landscaping, rural construction, municipal engineering, and other lifting needs. Powerful lifting performance, with an extra-large main boom cross-section and optimized machine matching technology. The medium-long boom is even more robust in high-frequency conditions, with full boom extremes at 28m length, 6m span, and a lifting capacity of 4t.
Project | Unit | XCT12K4-1 |
Maximum rated lifting capacity | t | 12 |
The longest main arm length | m | 28 |
Maximum lifting torque | kN.m | 451 |
Dimensions (Length × Width × Height) | mm | 10240×2500×3140 |
Wheelbase | m | 3.65 |
Minimum turning diameter | m | 14 |
Maximum driving speed | km/h | 90 |
Maximum climbing ability | % | 45 |
