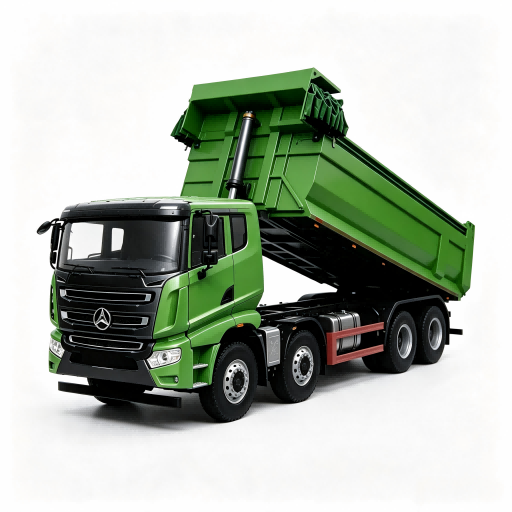

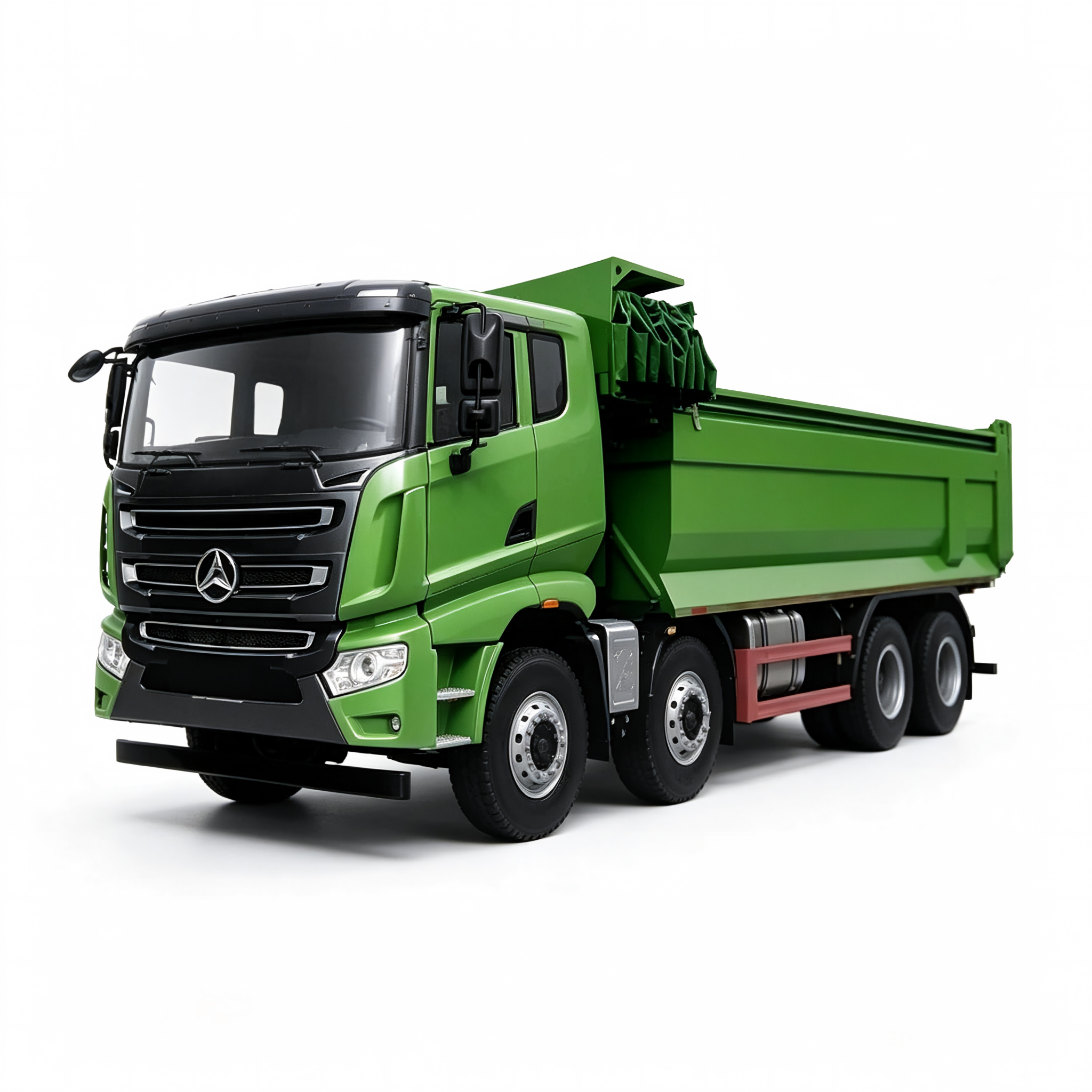

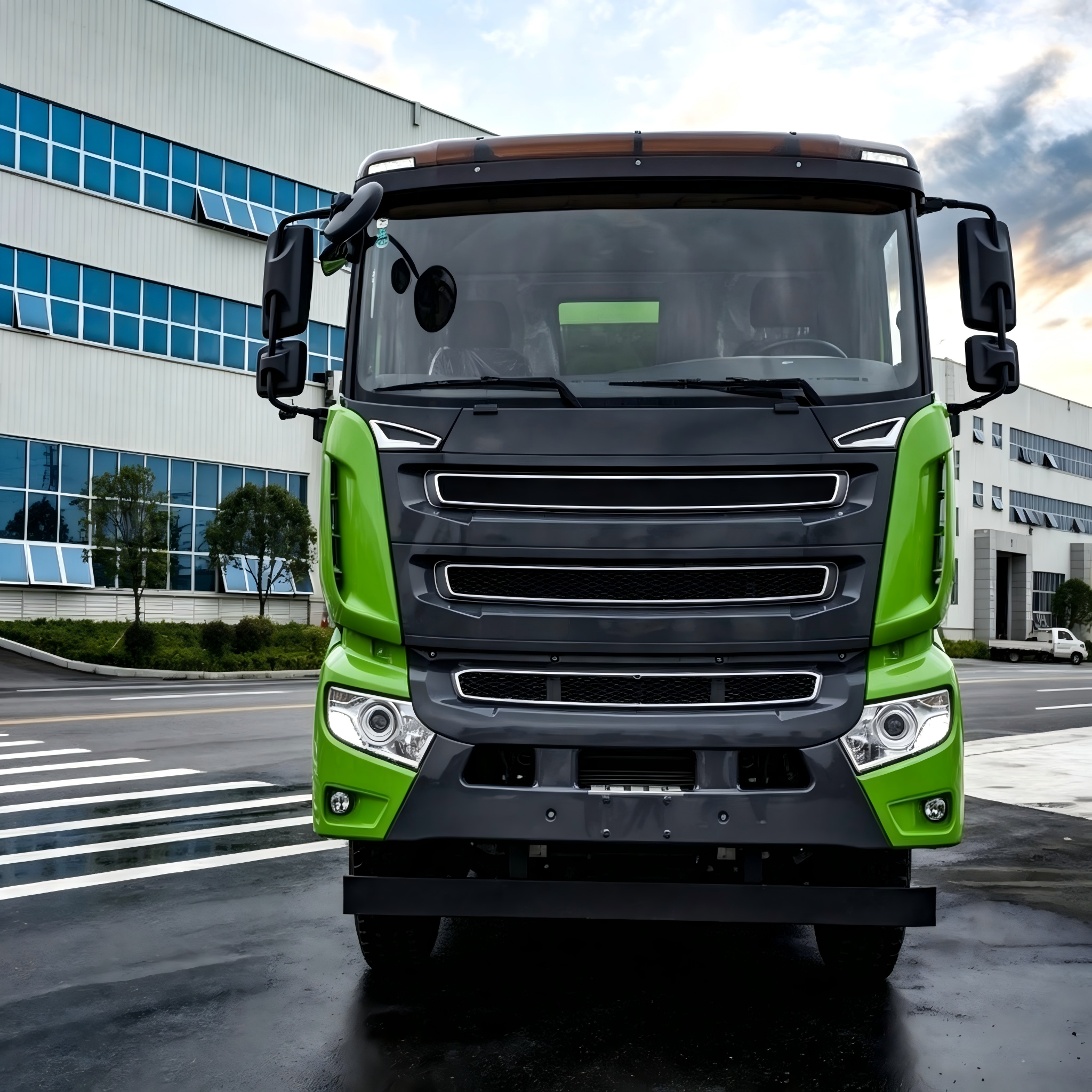

SYM3310ZZX1F
| Availability: | |
|---|---|
| Quantity: | |
Light weight oil saving
1.YC08 engine is adopted, with small volume, light weight and lightweight design, meeting the lightweight requirements of the complete vehicle.
2. Wide speed ratio transmission+small speed ratio rear axle are adopted, and the customized power chain is optimized through matching calculation according to specific market.
3. Application of overhead camshaft and roller rocker arm technology is beneficial to reduce engine oil consumption
Performance parameters
Vehicle specifications | Drive type 8×4 | Wheelbase 2000+2500/2800/3000+1400mm |
Overall vehicle dimensions 8800/9000/9200/9400/9600/9800*2540*3150/3280/3460mm | ||
Top size | Cargo box dimensions 5600/5800/6000/6200/6500/6800*2300/2350*900/1200mm | |
Chassis specifications | Cockpit 318 flat roof | Engine YCK08350-60 Yuchai YCK08350-60 |
Transmission Fast 10JSD120T/12JSD160T | Front axle 5.5T | |
Drive axles 13T: Hand | Frame 280 8+4 | |
Leaf spring 3/3/4,5/5/6,8/8/10,8/8/12 | Fuel tank 300/400L | |
Tires 11.00R20,12R22.5 | ||
Engine specifications | Displacement 7.7L | Rated power/speed 257/2200kW/rpm |
Maximum torque/speed 1450/1300-1500N·m/rpm | Emission standards National VI | |
